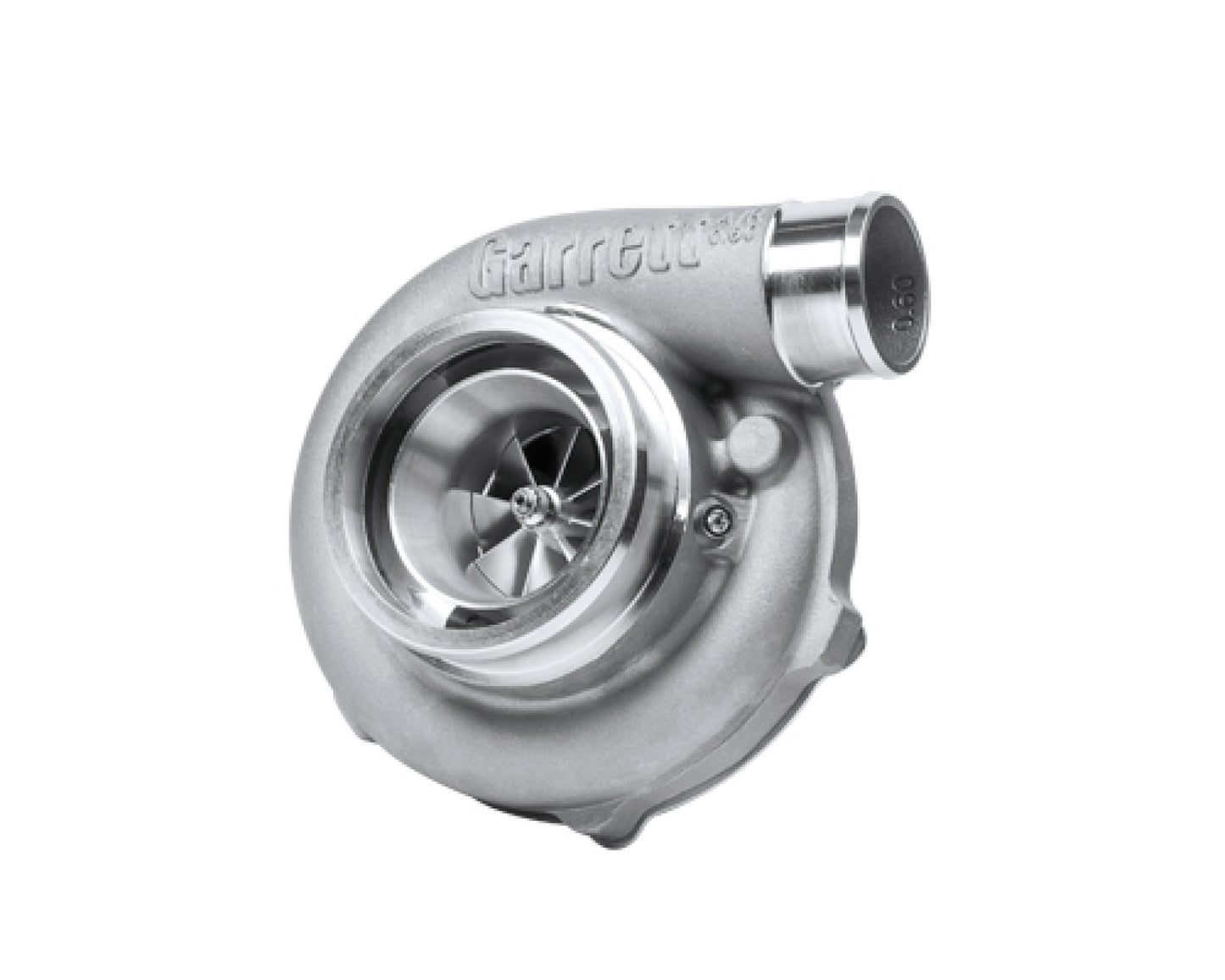

Garrett GTX3071R Gen II Turbo Assembly Kit V-Band / V-Band 0.61 A/R

Horsepower: 340 - 675

Displacement: 1.8L - 3.0L

Garrett Motion is excited to introduce the GTX3071R GEN II Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.

The GEN II GTX Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud for precise and accurate tolerances.

All GEN II GTX series turbochargers are compatible with all existing GT and GTX turbine housings kits. GEN II turbochargers are only offered through Garrett Motion authorized distribution centers.

Reference Data

• Compressor

  • Inducer 54mm
  • Exducer 71mm
  • Trim 58
  • A/R 0.60
• Turbine

  • Inducer 60mm
  • Exducer 55mm
  • Trim 84
