AEM Electronics

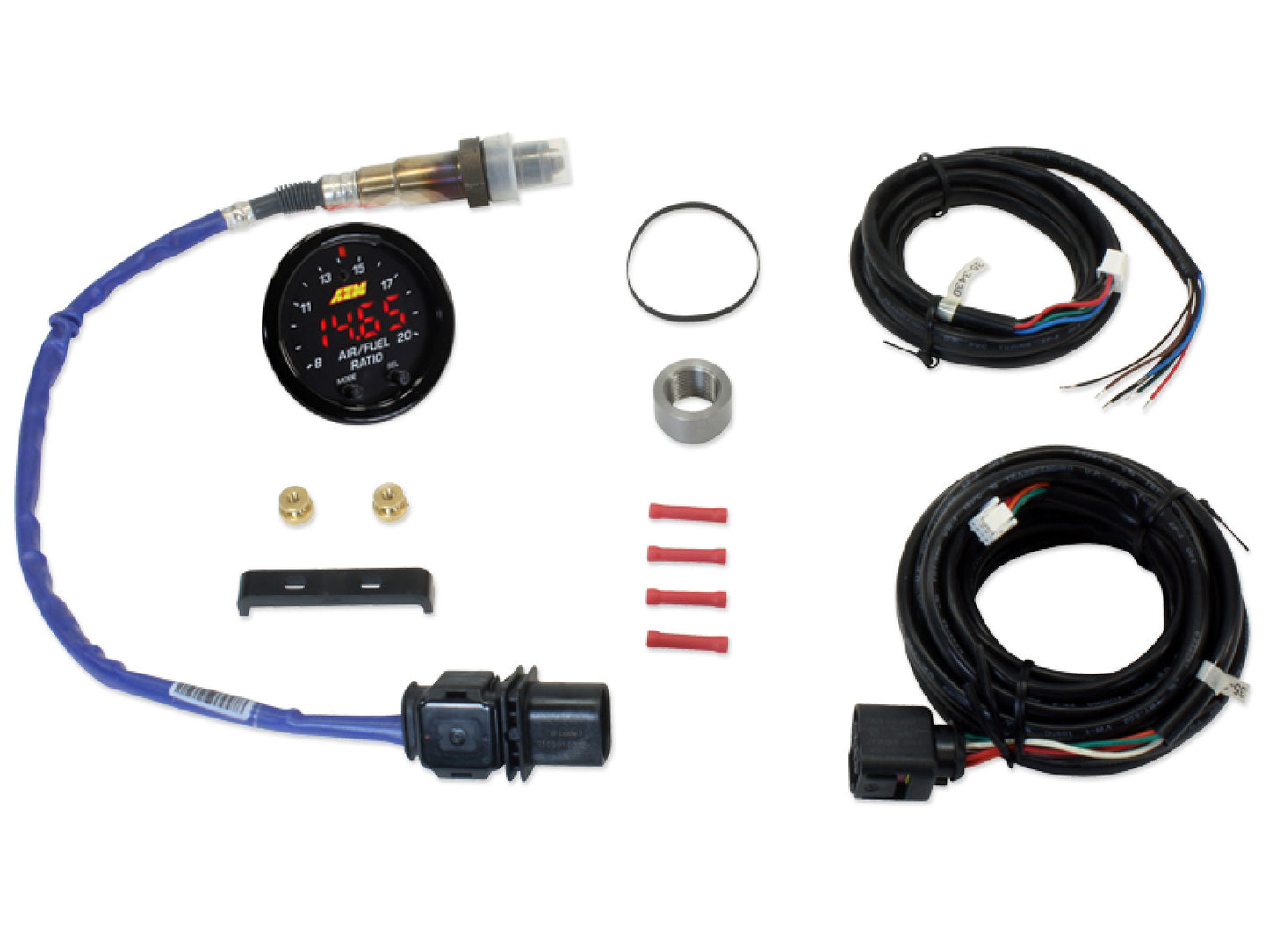

AEM X-Series Wideband UEGO AFR Sensor Controller Gauge with X-Digital Technology

AEM X-Series Wideband UEGO AFR Sensor Controller Gauge with X-Digital Technology

Regular price $199.80 USD
Regular price $222.00 USD Sale price $199.80 USD
Sale Sold out
Shipping calculated at checkout.

AEM’s X-Series Wideband UEGO Air/Fuel Ratio Sensor Controller Gauges are built upon unique, patent-pending X-Digital technology that makes them the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers*. The X-Series Wideband UEGO AFR Sensor Controller Gauge (PN 30-0300) measures 2 1/16th-inch (52mm) in diameter, and features a modern, visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 AEM Wideband Gauge’s center display. This creates the perception of a larger overall gauge, but in a common 52mm size for easy mounting. Its slim depth (less than one inch overall) and ultra slim cup depth of .200-inches dramatically increases its application base and potential mounting locations. The X-Series Wideband UEGO AFR Gauge has a user configurable display via buttons on the gauge face that allow you to change AFR values for different fuels, Lambda or O2%, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced faceplate for air/fuel and Lambda are included, and an optional silver bezel with white dual-faced air/fuel and Lambda faceplate is available (PN 30-0300-ACC, sold separately). An Auto Dimming feature is included. Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge’s durability. Black bezel and faceplate included. Please email us after ordering if you would like the white bezel and faceplate

  • X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
  • Includes Bosch 4.9LSU wideband UEGO sensor
  • Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
  • Compatible with vehicle/system voltages up to 16V
  • 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
  • Can display AFR values in hundredths of %
  • 52mm gauge diameter and slim 0.825” gauge depth
  • Gauge cup depth only .200” deep!
  • Auto dimming feature
  • User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
  • Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
  • Locking connectors

AEM X-series
