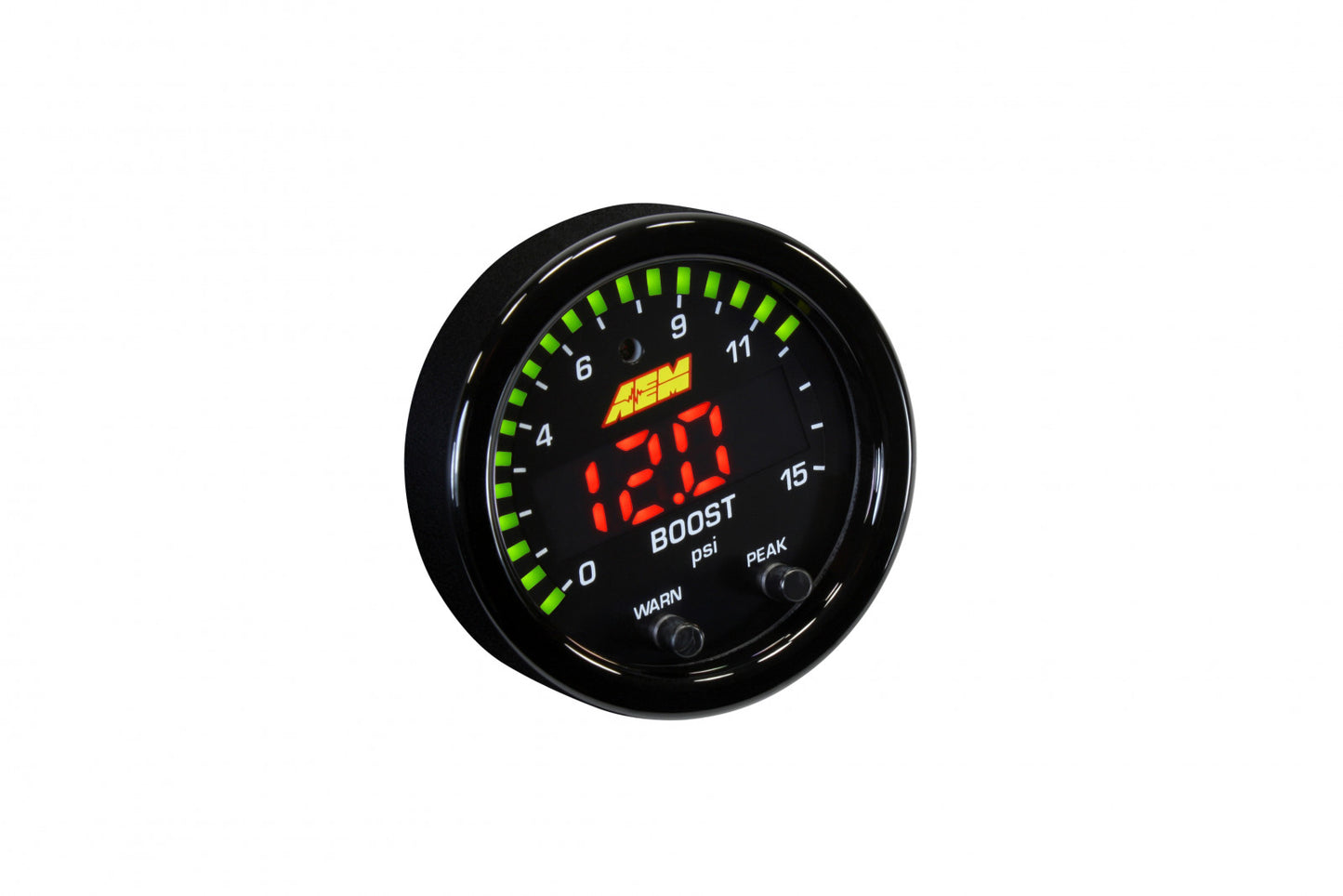

AEM X-Series Pressure Gauge 0-15psi Black Bezel & Black Boost/Fuel Faceplate
AEM X-Series Pressure Gauge 0-15psi Black Bezel & Black Boost/Fuel Faceplate
Regular price
$220.95 USD
Regular price
$246.00 USD
Sale price
$220.95 USD
Unit price
per
Driver-friendly reliability meets incredible style through AEM's X-Series Pressure Gauge 0-15psi Black Bezel & Black Boost/Fuel Faceplate. Designed with the needs of drivers in mind, the AEM X-Series Boost Pressure Gauge provides extremely accurate boost pressure readouts displayed in an easily readable layout, and measures up to 15 PSI in high performance vehicles. Visual improvements, including a brighter center LED display that is 87% larger than previous digital gauges, a sweeping green LED "needle" that lines the edge of the gauge face, allowing for quick reference, and a 33% overall increase in the gauge face display all contribute to the increased readability of this Boost Pressure Gauge. In addition, thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200," which make them easily mountable almost anywhere. The gauges are AEMnet CAN-bus enabled, allowing them to be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems. With the X-Series Boost Pressure Gauge, getting accurate readings from swift glances is more reliable than ever!
NOTE: The 30-0308 comes with a black bezel and reversible black PSI/BAR boost pressure faceplate. The add-on 30-0308-ACC accessory kit gives access to the sleek silver bezel and reversible white standard/metric boost pressure faceplate.
NOTE: The 30-0308 comes with a black bezel and reversible black PSI/BAR boost pressure faceplate. The add-on 30-0308-ACC accessory kit gives access to the sleek silver bezel and reversible white standard/metric boost pressure faceplate.
Features:
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
- Programmable center LED is 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to engine parameter
- Peak/Recall via gauge face buttons
- User selectable threshold warnings ( up to 15PSI)
- Peak/Recall via gauge face buttons
- User selectable threshold warnings
- Optional silver bezel and faceplate accessory kits available (30-0308-ACC sold separately)
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- Auto dimming sensor delivers ideal display brightness
- Positive locking connectors provide secure connection
