AEM Electronics

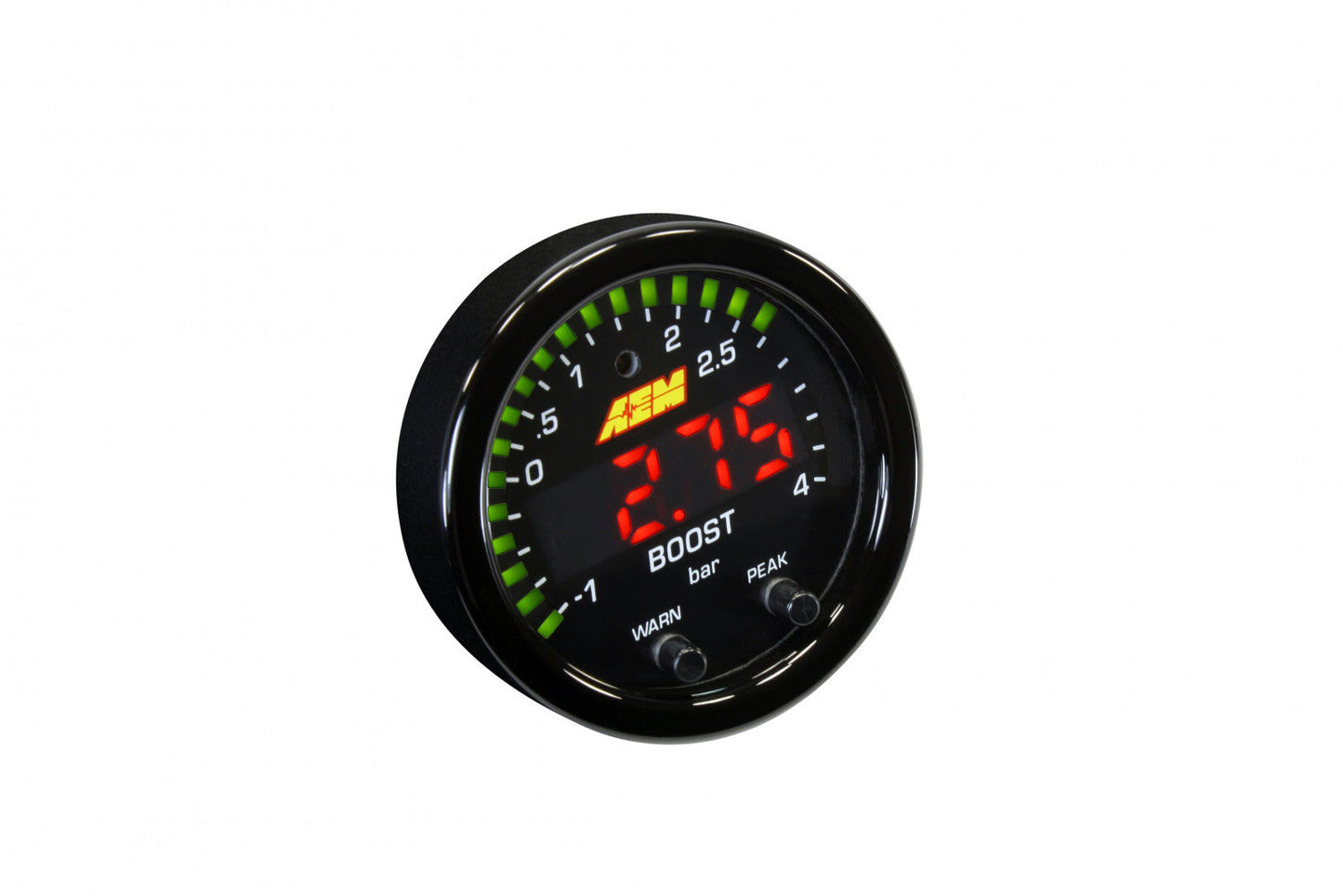

AEM X-Series Boost Pressure Gauge -30-60psi / -1-4bar Black Bezel & Black Faceplate

AEM X-Series Boost Pressure Gauge -30-60psi / -1-4bar Black Bezel & Black Faceplate

Regular price $286.95 USD
Regular price $319.00 USD Sale price $286.95 USD
Sale Sold out
Shipping calculated at checkout.
Driver-friendly reliability meets incredible style through AEM's X-Series Boost Pressure Gauge -30-60psi / -1-4bar Black Bezel & Black Faceplate. Designed with the needs of drivers in mind, the AEM X-Series Boost Pressure Gauge provides extremely accurate boost pressure readouts displayed in an easily readable layout, and measures up to 35 PSI or 2.5 BAR in high performance vehicles. Visual improvements, including a brighter center LED display that is 87% larger than previous digital gauges, a sweeping green LED "needle" that lines the edge of the gauge face, allowing for quick reference, and a 33% overall increase in the gauge face display all contribute to the increased readability of this Boost Pressure Gauge. In addition, thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200," which make them easily mountable almost anywhere. The gauges are AEMnet CAN-bus enabled, allowing them to be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems. With the X-Series Boost Pressure Gauge, getting accurate readings from swift glances is more reliable than ever!

NOTE: The 30-0308 comes with a black bezel and reversible black PSI/BAR boost pressure faceplate. The add-on 30-0308-ACC accessory kit gives access to the sleek silver bezel and reversible white standard/metric boost pressure faceplate.

Features:

  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
  • Programmable center LED is 87% larger than original AEM gauges
  • 24 green outer LEDs for quick reference to engine parameter
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings ( -30in/Hg~35PSI / -1~2.5BAR)
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings
  • Optional silver bezel and faceplate accessory kits available (30-0308-ACC sold separately)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection
