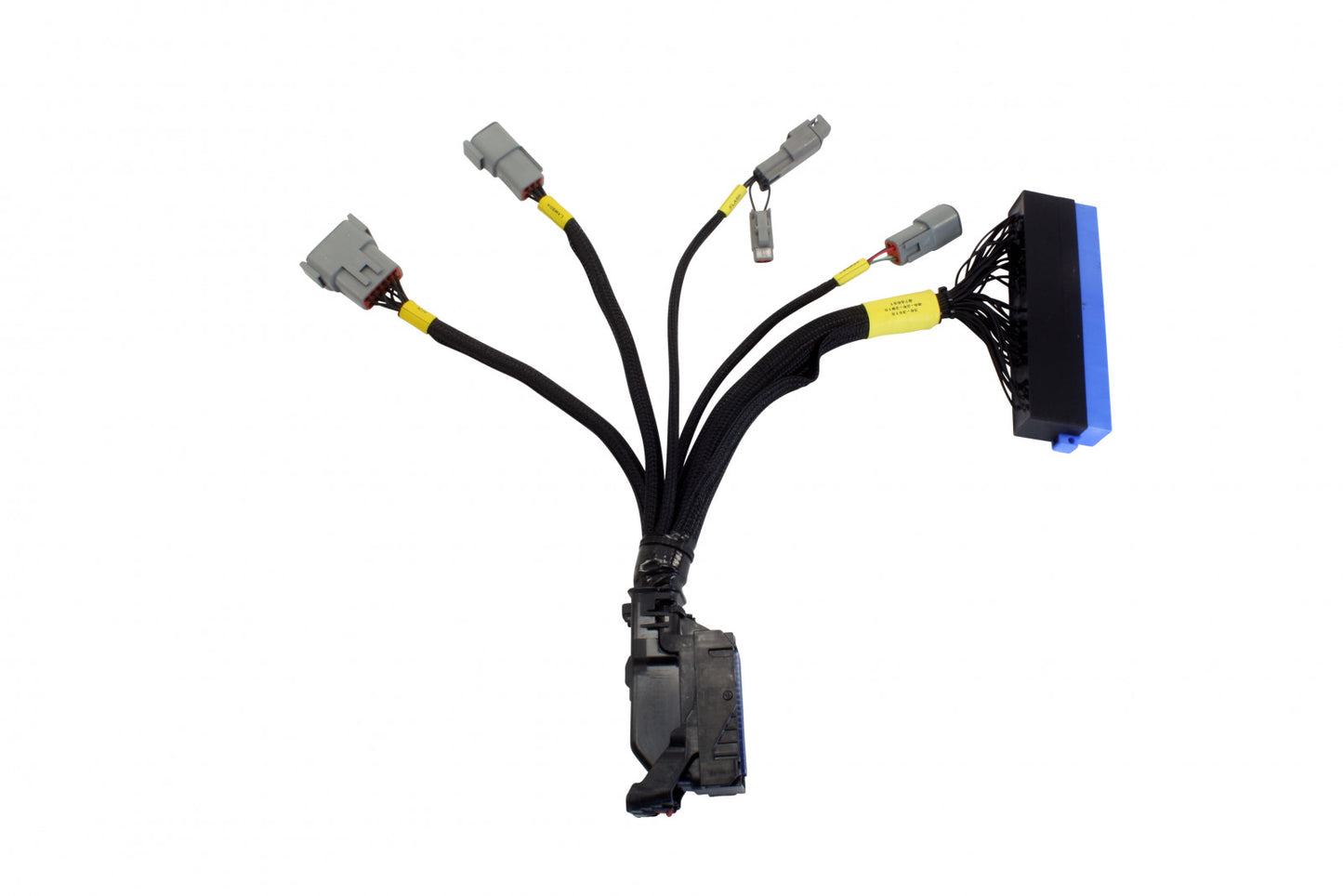

AEM Infinity Plug & Play Jumper Harness for Nissan 1994-1996 Silvia SR20DET

Plug & Play Harness with Expansion Port

AEM’s Plug & Play harness for Nissan SR20DET engines includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.

Complete Stand Alone Engine Control

The Infinity 506/508 Plug & Play Jumper Harness (PN 30-3517) allows Infinity ECUs (Infinity 506 PN 30-7106 and Infinity 508 PN 30-7108) to connect to an engine.

The Plug & Play harness combines with an Infinity ECU to replace the factory ECU. The aforementioned harness eliminates the need for cutting and splicing wires, and the Infinity ECU offers straightforward control over all engine functions.
